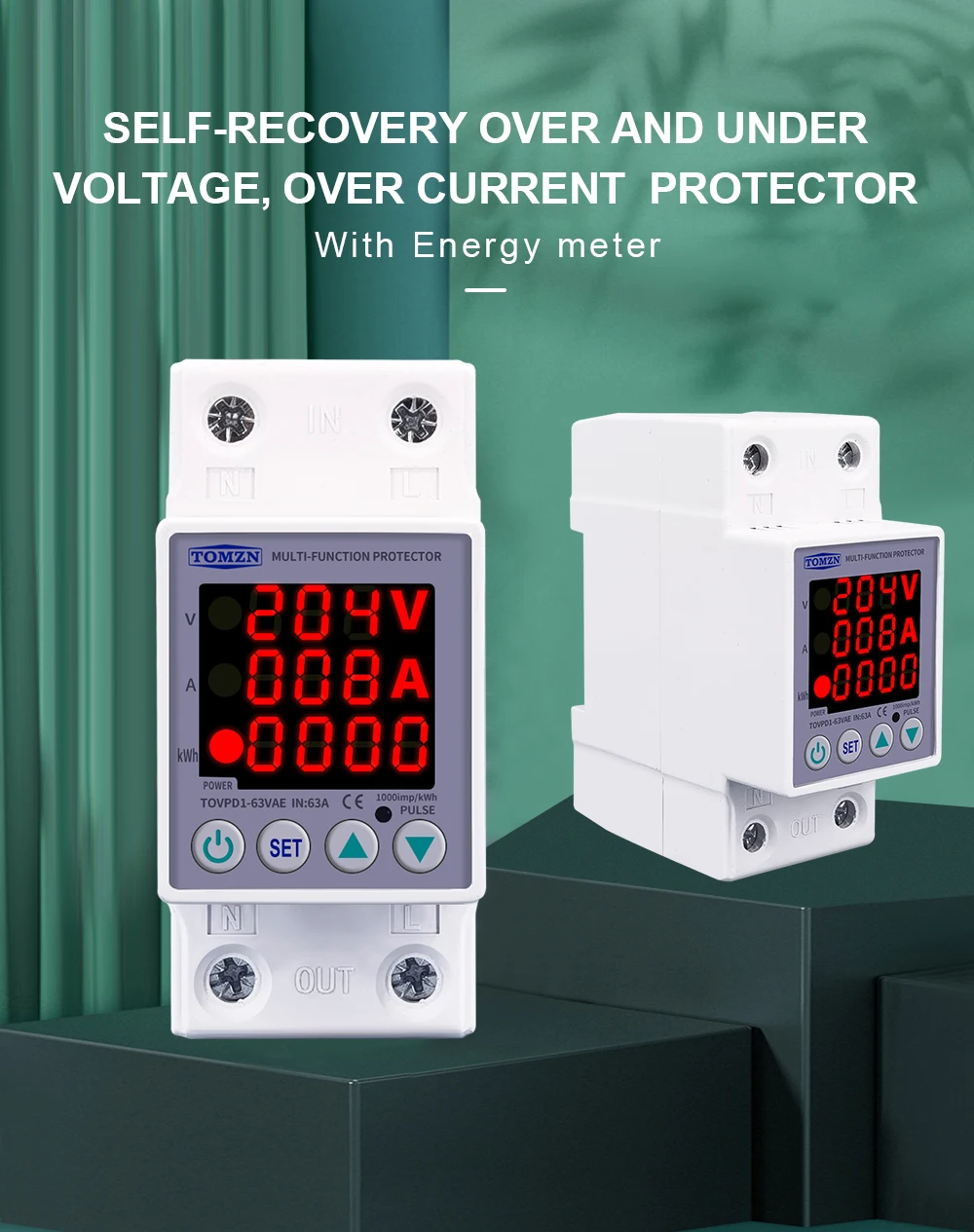

3IN1 Display Adjustable over and under voltage protective device With Energy Meter

Product specification

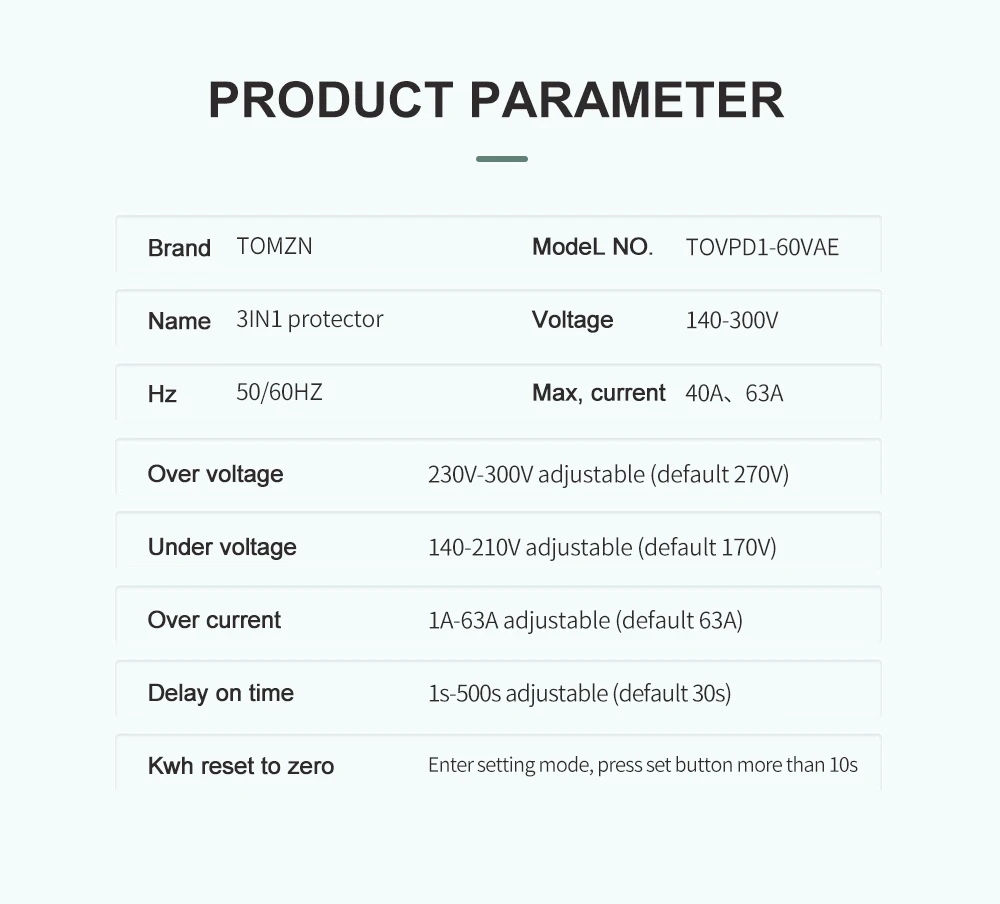

Rated voltage: 140-300V; Frequency: 50Hz/60HZ

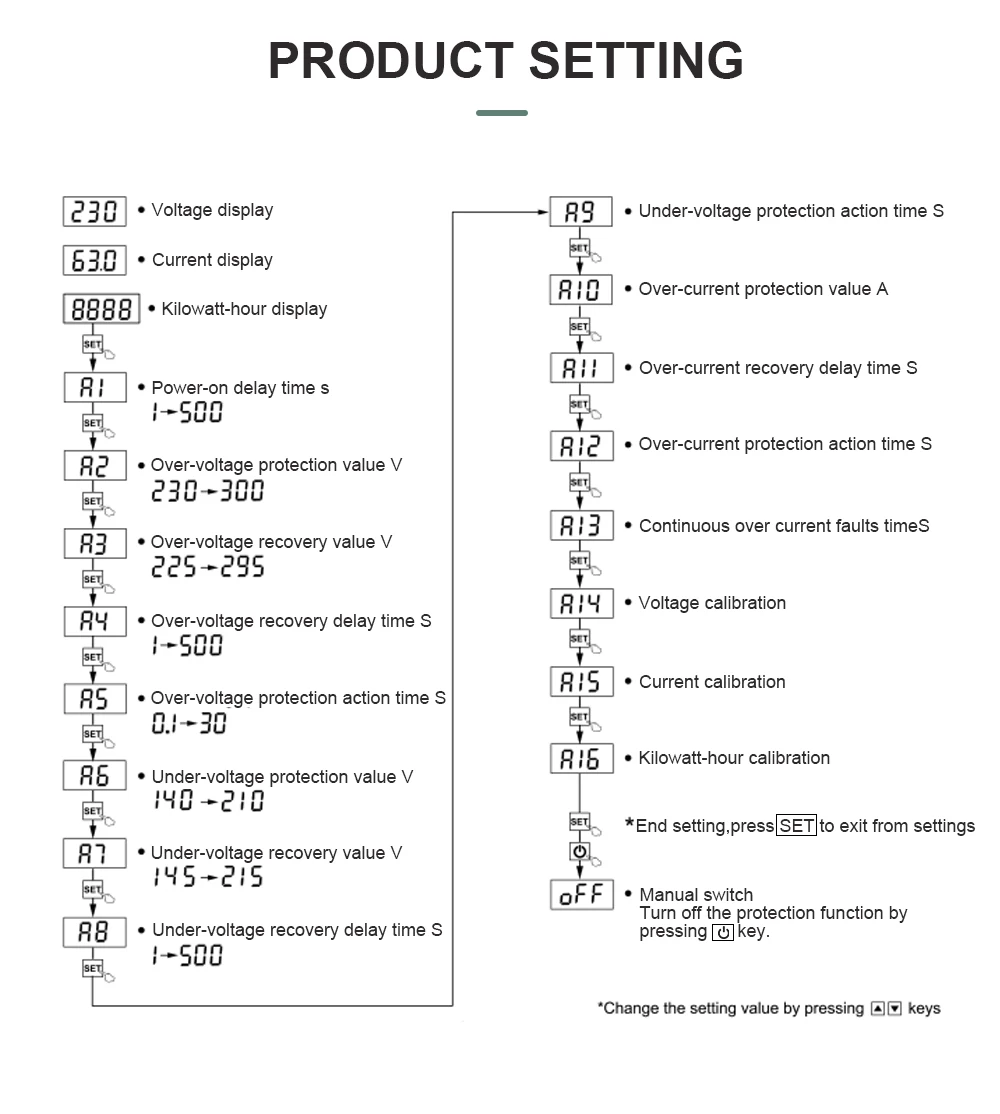

Function: 1. Under voltage protection 140V-210V (adjustable) (default: 170V) can be disable

                  2. Over voltage proteciton 230V-300V (adjustable) (default: 270) can be disable

                  3. Over current protection 1A-63A (adjustable) (default: 40A)

                  4. Reconnect time (delay on time): 1-500s (default: 30s)

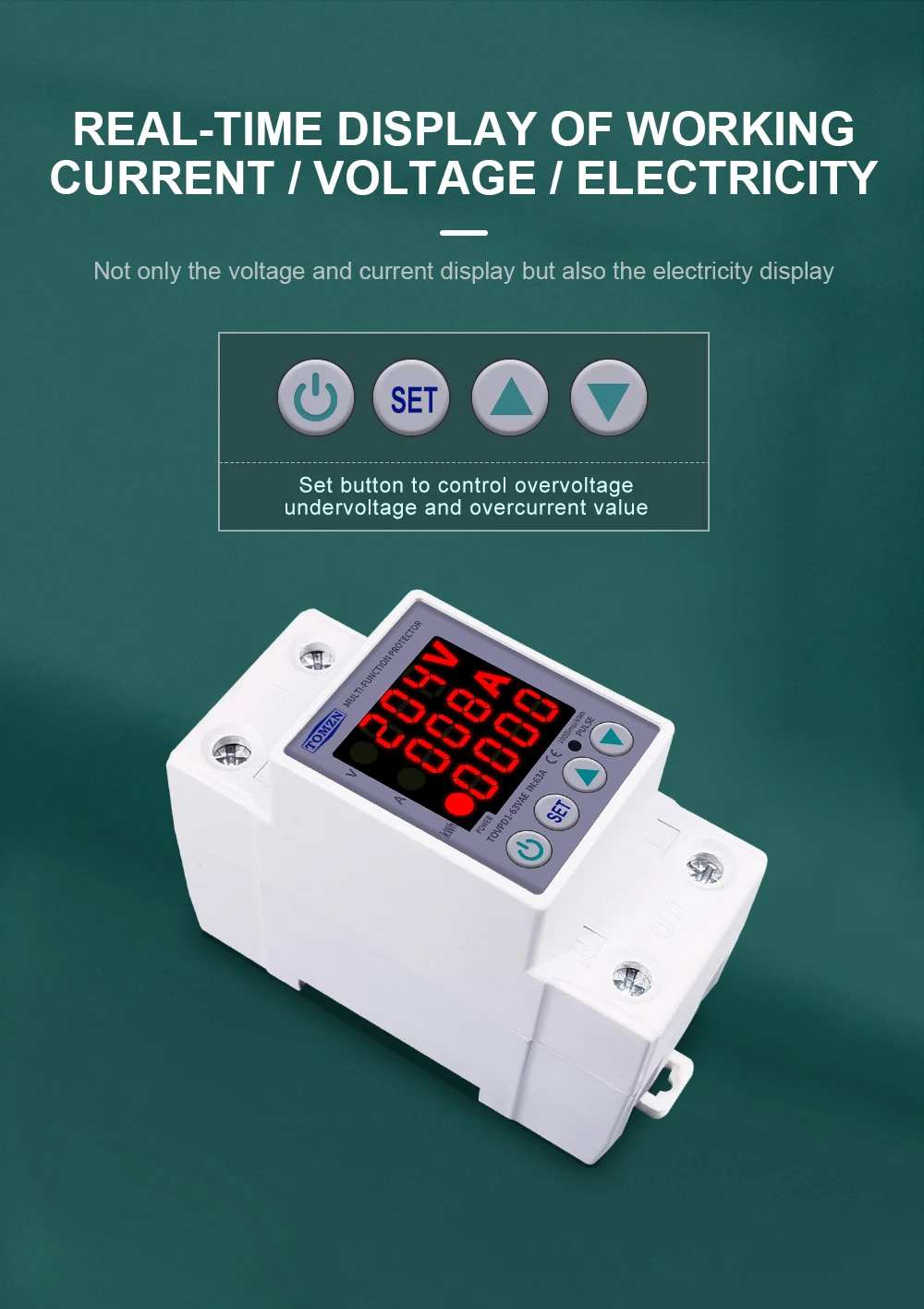

                  5. Voltage meter

                  6. Ammeter

                  7. Energy meter

When power off, the product can memory the Kwh, over voltage, under voltage and over current value.

When V LED flash, it means over or under voltage protection

When A LED flash, it means over current protection.
