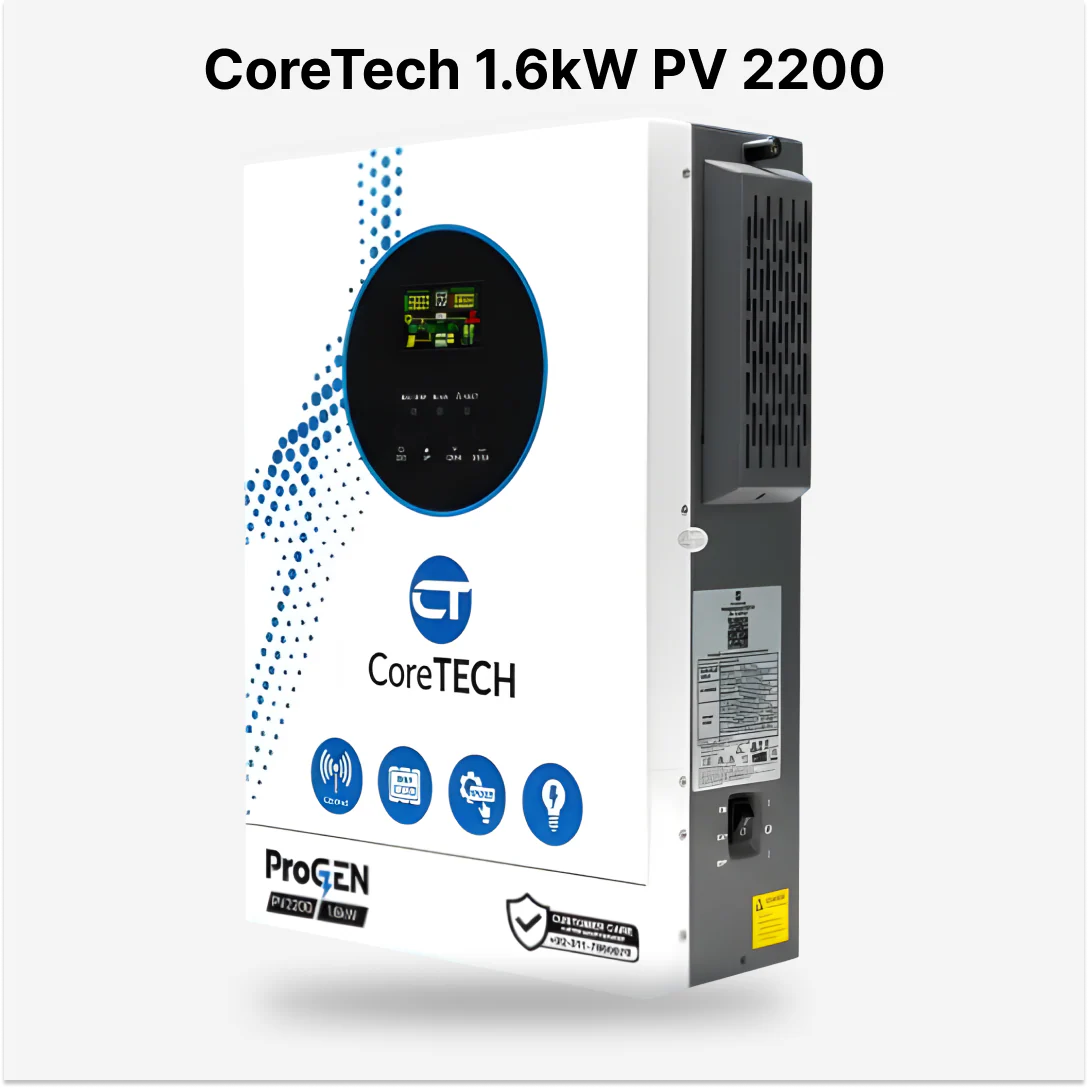

CoreTech 1.6kW PV 2200 IP21 OffGrid Solar Inverter
₨ 50,000
-
Model: ProGEN PV 2200
-
Rated Output Power: 1600W
-
Maximum PV Input Power: 2200W
-
Peak Power: 3200VA
-
Waveform: Pure Sine Wave
-
Efficiency (Battery Mode): Up to 94%
-
Display & Interface
-
Display: LCD (Running Mode, Load, Input, Output, etc.)
-
RS232: Supported (Baud Rate: 2400)
-
Communication Options:
-
Lithium Battery BMS Card
-
WiFi Card
-
Dry Contact
-
-
Description
AC Input
-
Input Wiring: L + N + PE
-
Rated Input Voltage: 220 / 230 / 240 VAC
-
Voltage Range:
-
90–280 VAC ±3V (APL Mode – Home Appliances)
-
170–280 VAC ±3V (UPS Mode – Computers)
-
-
Frequency: 50Hz / 60Hz (Auto Adaptive)
AC Output
-
Rated Capacity: 1600W
-
Output Voltage: 220 / 230 / 240 VAC ±5%
-
Output Frequency: 50 / 60 Hz ±0.1%
-
Transfer Time:
-
UPS Mode (Computers): 10ms
-
APL Mode (Appliances): 20ms
-
Battery
-
-
Battery Voltage: 12V DC
Constant Charging Voltage (Adjustable): 14.1V DC
Float Charging Voltage (Adjustable): 13.5V
Solar Charging (MPPT)
-
PV Charging Mode: MPPT
-
Max PV Input Power: 2200W
-
MPPT Voltage Range: 30 – 500V DC
-
Best Operating Voltage: 300 – 400V DC
-
Max PV Input Voltage: 500V DC
-
Max PV Charging Current: 100A
-
Max AC Charging Current: 60A
-
Max Total Charging Current: 100A
